Beagle Bone Black Cape

Community PCB Design
1

Hello,

I am using the BEAGLE_BONE_BLACK_CAPE from the Sparkfun library which has the outline of the cape on the tDocu layer. How can I indicate to a fab that I want that to be the edge of the board? Can I also use that profile as the edge of my GND pour?

Thanks,

Istvan.

2

You can change the layer type with the change tool.

3

Hello,

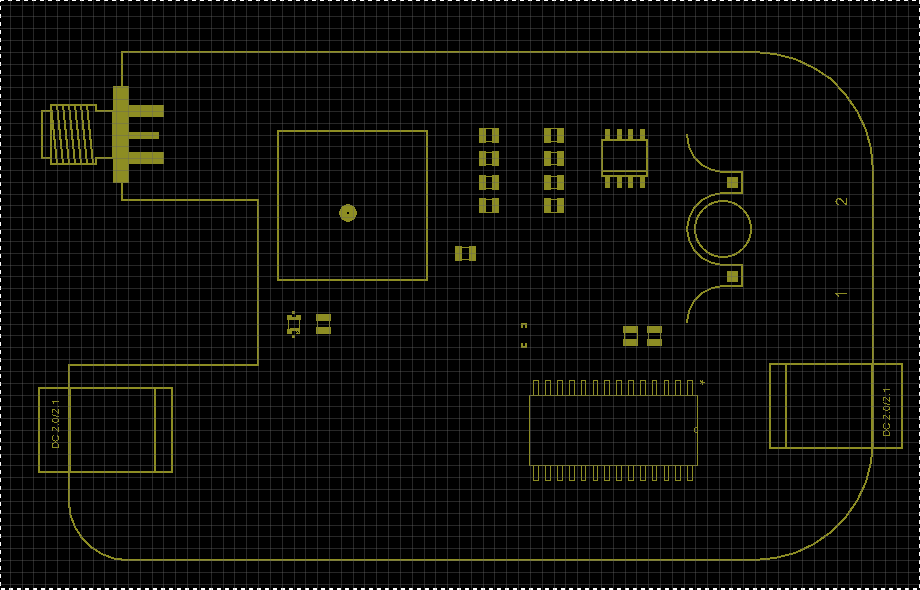

Having already wired up my board (except the ground pour), here is what my tDocu layer looks like:

fhXpZQm.png920×590 4.8 KB
http://i.imgur.com/fhXpZQm.png

I don’t want to change the entire layer, just the outline of the board.

How can I extract that shape to use for the pour? And how can I use that shape to make a dxf (or is there a better way to indicate to a fab that I want that shape?)

4

You can use the copy and paste to get the outline for the ground pour. You select just one segment at a time to change it… It’s the button that has a wrench on it… Select layer, then the dimension layer and click on the segments you want to change.
